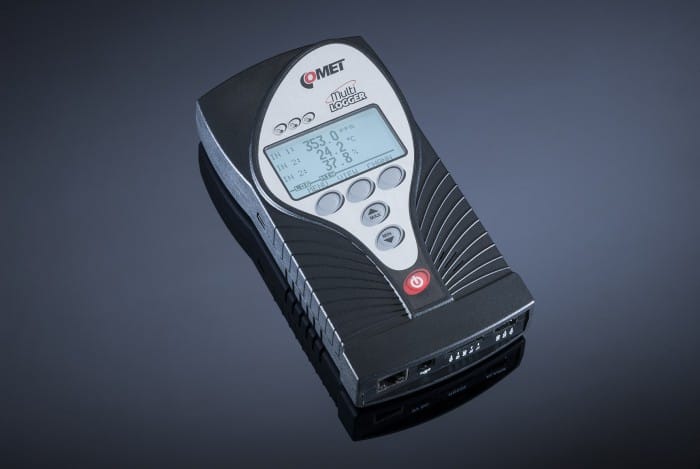

Multilogger - Termo-higro-barómetro con 2 entradas MiniDIN y 2 terminales
Registrador de datos universal con entrada hardware, sensor interno de presión barométrica con interfaz Ethernet.
El Multilogger puede ser instalado permanentemente a una red Ethernet ó bien funcionar como dispositivo portátil.
Incluye certificado de calibración trazable según norma EN ISO/IEC17025.
El Multilogger es un registrador de datos con funcionamiento a pilas capaz de medir y registrar valores de sensor y eléctricos a través de sus entradas.
El registrador de datos puede ser conectado a Ethernet. Después, los valores medidos se pueden visualizar en un navegador web, o bien descargarlos y almacenarlos para su posterior análisis.
-
códigoM1321
-
Garantía3 años
Datos técnicos
Valor Medido
Características
Applications:
Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

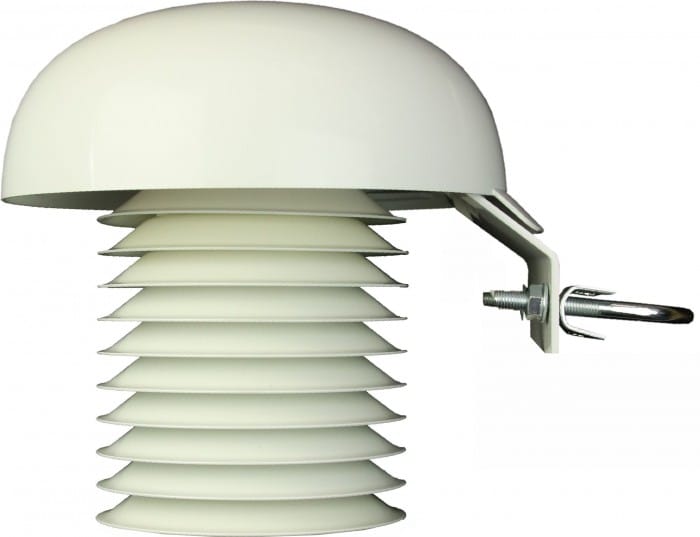

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.
Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.
Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.
Features description:
● the features may vary depending on the device type● memory for 1 million values
● indication of alarm conditions via e-mail, SMS, integrated acoustic siren LEDs, stwo-state output to control other devices
● analytical software for data processing and configuration - COMET Vision
● communication interfaces - USB, RS232 and Ethernet (SNMPv1 and XML)

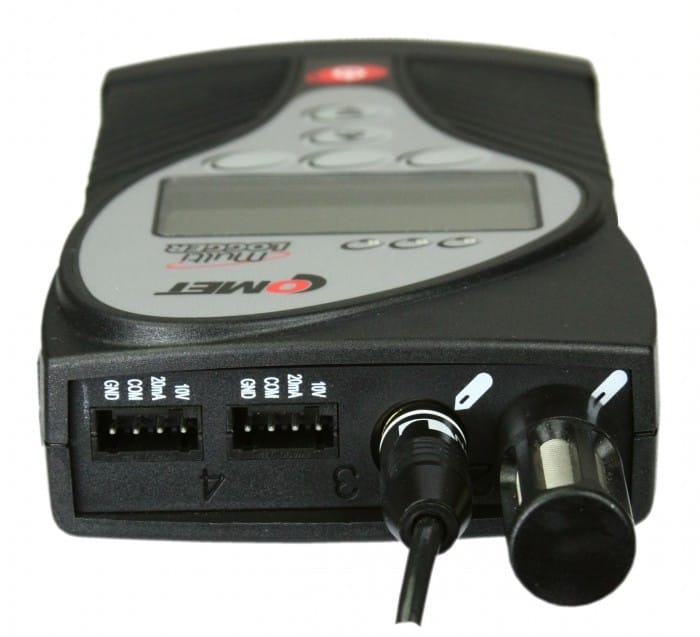

Up to 4 physical Inputs - 2x TERMINALS + 2x MiniDin
- Sensors with woltage output (range 0-10 V; accuracy ±10 mV)
- Sensors with current output (range 0-20 mA; accuracy ±20 µA)
- Devices with two-state output (potential-less contact or voltage signal 0-30V); may be applied to input 3 and 4
- Devices with pulse signal (potential-less contact or voltage signal 0-30V); may be applied to input 4

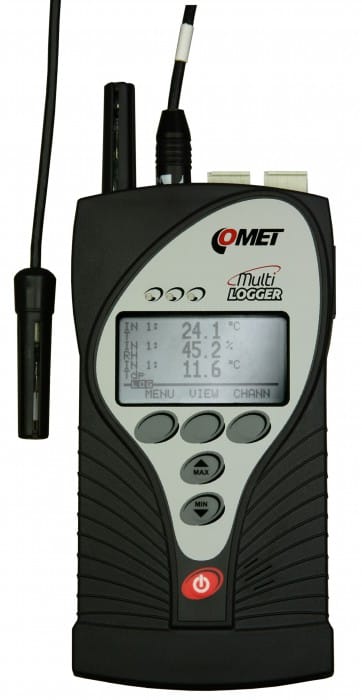

- Temperature probes Pt1000 with built-in configuration memory (serie xxx/M)
- Temperature/relative humidity probes with digital output - DigiS/M, DigiL/M, DIGIH/M
- The probes are interchangeable without calibration to a specific device and regardless of the length of the cable. The length of the cable can be 1, 2, 5, 10, 15 meters.
- Internal barometric pressure sensor (range 600 - 1100 hPa; accuracy ±1.3 hPa at 23°C)
Evaluation of up to 16 variables
The measured values are stored in the internal non-volatile memory. Memory capacity is up to 1 million values. Logging mode can be adjusted as non-cyclic, when logging stops after filling the memory, or cyclic, when after fulfilling the memory oldest stored values are overwritten by new ones.

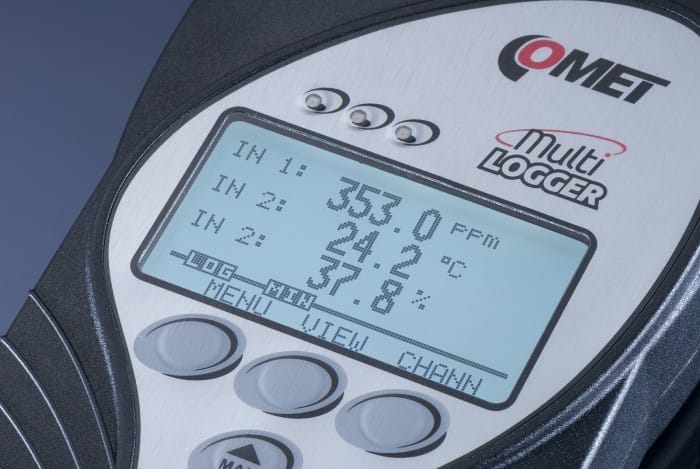

Measured values are displayed on the screen with backlight option and the ability to change the size of display digits
Power supply
Multilogger can be powered by AC adapter or by rechargeable batteries with charging capability. Batteries are always a part of the device (you can also use standard alkaline AA batteries). Batteries power the device for several months.
While using the AC adapter, the batteries provide backup operations and provide recording and measurement during power failure. Thanks to the Ethernet output the device informs about the failure via e-mail message.
Alarm limits and alarm indication
It is possible to set two independent alarm limits for each channel (i.e. measured or calculated value).
Alarm signalization can be acoustic (built-in beeper), optical, sending an e-mail alert or an alarm output. The alarm output is for connecting an external audio or visual alarm.

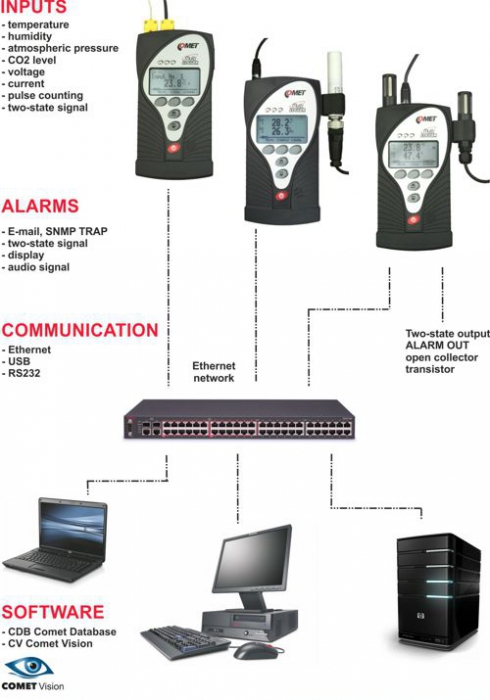

Communication interfaces
Multilogger is always equipped with USB connector for communication, data analysis and also for charging of the rechargeable batteries.
Included Ethernet interface allows to:
- send an e-mail when an alarm state starts or ends
- use DATALINK: display current values or download values from memory to COMET Database in your PC. Software COMET Database contains many useful tools for data analysis - graphs, tables, statistics, etc.
- simple wireless communication with Wi-Fi TP-LINK router
- third-party applications to read the actual measured values using universal protocols SNMPv1 and XML
- view current measured values using your web browser

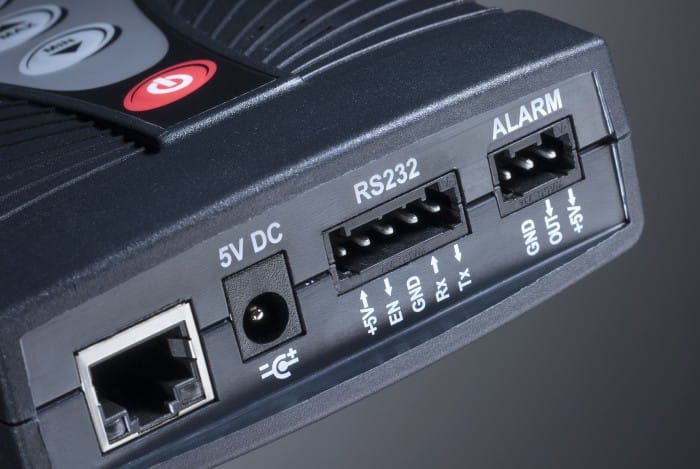

Output ALARM OUT
- Output can be used for controling other devices when alarm is launched, such as external buzzer, telephone dialer etc.
- Type of output - open collector transistor
- Max. switching current - 100 mA
- Max. voltage on output - 24 V
- Auxiliary voltage at terminal - +5 V (only when the mains supply is present)
- Users can receive alarms if the values go outside the paramters set. Alarms are indicated through an internal buzzer , 3 LEDs or email alerts via Ethernet port.
Accesorios opcionales
Pt1000TG8/M, sonda de temperatura
Pt1000TG8/M, sonda de temperatura, cable 2 m
Pt1000TG8/M, sonda de temperatura, cable 5 m
Pt1000TG8/M, sonda de temperatura, cable 10 m
Pt1000TG7/M, sonda de temperatura
Pt1000TG7/M, sonda de temperatura, cable 2 m
Pt1000TG7/M, sonda de temperatura, cable 5 m
Pt1000TG7/M, sonda de temperatura, cable 10 m
2301-220/M, sonda de temperatura, cable 1 m
2021-150/M, sonda de temperatura, cable 1 m
2034-220/M, sonda de temperatura, cable 1 m
2061-200/M, sonda de temperatura, cable 1 m
2061-200/M, sonda de temperatura, cable 2 m
2061-200/M, sonda de temperatura, cable 5 m
2061-200/M, sonda de temperatura, cable 10 m
PTS350A-5/M, sonda de temperatura, cable 5 m
PTS350A-10/M, sonda de temperatura, cable 10 m
Pt1000TGL40/M, sonda de temperatura, cable 1 m
Pt1000TGL40/M, sonda de temperatura, cable 2 m
Pt1000TGL40/M, sonda de temperatura, cable 5 m
Pt1000TGL40/M, sonda de temperatura, cable 10 m
Pt1000TR160/M, sonda de temperatura, cable 1 m
Pt1000TR160/M, sonda de temperatura, cable 2 m
Pt1000TR160/M, sonda de temperatura, cable 5 m
Pt1000TR160/M, sonda de temperatura, cable 10 m
Pt1000TR160/M, sonda de temperatura, cable 15 m
2091-200/M, Sonda de penetración, cable 1 m
2091-200/M, Sonda de penetración, cable 2 m
2091-200/M, Sonda de penetración, cable 5 m
2091-200/M, Sonda de penetración, cable 10 m
Pt1000TG68/M, sonda de temperatura, cable 2 m
Pt1000TG68/M, sonda de temperatura, cable 5 m
Pt1000TG68/M, sonda de temperatura, cable 10 m
Pt1000TR125/M, sonda de temperatura, cable 1 m
Pt1000TR125/M, sonda de temperatura, cable 2 m
Pt1000TR125/M, sonda de temperatura, cable 5 m
Pt1000TR125/M, sonda de temperatura, cable 10 m
200-80/M, sonda de temperatura de aire
Pt1000TR050S/M, sonda de temperatura, cable 1 m
Pt1000TR050S/M, sonda de temperatura, cable 2 m
Pt1000TR050S/M, sonda de temperatura, cable 5 m
Sonda de temperatura ultrafina Pt1000TG3 / M, conector MiniDin
Sonda de temperatura ultrafina Pt1000TG3 / M, conector MiniDin, cable 2 metros
Sonda de temperatura ultrafina Pt1000TG3 / M, conector MiniDin, cable 5 metros
Sonda de temperatura ultrafina Pt1000TG3 / M, conector MiniDin, cable 10 metros
Pt1000TR050S/M, sonda de temperatura, cable 10 m
Sonda de temperatura Pt1000TG8Ex/M, conector MiniDin, para ATEX zona II
Sonda de temperatura Pt1000TG8Ex / M, conector MiniDin, para ATEX zona II, cable 2 metros
Sonda de temperatura Pt1000TG8Ex / M, conector MiniDin, para ATEX zona II, cable 5 metros
Sonda de temperatura Pt1000TG8Ex/M, conector MiniDin, para ATEX zona II, cable 10 metros
Sonda de temperatura Pt1000TG8Ex / M, conector MiniDin, para ATEX zona II, cable 15 metros
Pt1000TR050M/M, sonda de temperatura, cable 1 m
Pt1000TR050M/M, sonda de temperatura, cable 2 m
Pt1000TR050M/M, sonda de temperatura, cable 5 m
Pt1000TR050M/M, sonda de temperatura, cable 10 m
Sonda digital ultrafina de temperatura/humedad
Sonda digital ultrafina de temperatura/humedad, cable 2 m
Sonda digital ultrafina para temperatura/humedad, cable 5 m
Sonda digital temperatura/humedad, para inserción directa
Sonda digital temperatura/humedad, cable 1 m
Sonda digital de temperatura/humedad, cable 10 m
Sonda digital de temperatura/humedad, cable 15 m
Sonda digital de temperatura/humedad, cable 2 m
Sonda digital de temperatura/humedad, cable 5 m
Sonda digital de temperatura/humedad
Sonda digital de temperatura/humedad, cable 1 m
Sonda digital de temperatura/humedad, cable 10 m
Sonda digital de temperatura/humedad, cable 15 m
Sonda digital de temperatura/humedad, cable 2 m
Sonda digital de temperatura/humedad, cable 5 m
Adaptador AC/DC 230Vac a 5Vdc/2.1A, EU
Adaptador AC/DC 230Vac a 5Vdc/2.1A, UK
Adaptador AC/DC 230Vac a 5Vdc/2.1A, US
Accredited temperature calibration
Accredited temperature and relative humidity calibration
Accredited atmospheric pressure calibration
300Mbps N Nano Router inalámbrico
Soporte de pared para Multilogger
Soporte para montaje del Multilogger en superficies magnéticas
Soporte de pared para sondas externas DIGIL
Base de datos Comet
COMET Vision - Software para Dataloggers y Multiloggers
Visor Database para base de datos Comet
Contacto magnético de la puerta SA-200-A
Contacto magnético de la puerta con cable longitud 10m
Contacto magnético de la puerta con cable longitud 15m
Contacto magnético de la puerta con cable de longitud 2m
Contacto magnético de la puerta con cable de longitud 20m
Contacto magnético de la puerta con cable de longitud 30m
Contacto magnético de la puerta con cable de longitud 5m
Adaptador para fácil conexión de señales U/I para Multilogger
Unidad externa de audio para MSxx y Multilogger
Software
Comet Vision Software (2.3.8935.24346 dbapi 21.1)
Comet Database One Click Installer (21.1-V)
Database Viewer 3.20.0.0 dbapi 21.1
Conversions - application for recalculation of values
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Instruction Manual - the connection of detectors to the Multilogger M13xx
Quick Start Manual
Declaration of Conformity
MIB
Catalogs
CATALOG - Multilogger
Catalogue Sheets - COMET Multiloggers
